What Types of C-Arms Are Used Today?

Mobile C-arm machines are used for a range of diagnostic imaging and minimally invasive surgical procedures. They’re fluoroscopy devices and could be colloquially referred to as “image intensifiers.” What’s so useful about them is that they’re flexible, and thus can be used in a variety of situations. In fact – C-Arms come in different sizes including Mini C-Arms, Compact C-Arms, Full-Size C-Arms, and Super C C-Arms. Keep in mind there are also modifications for C-arms such as digital retrofit devices for analog C-arms.

Mini C-Arms

Mini-C-Arm machines are smaller systems typically used in clinics for: sports medicine, orthopedic and podiatric imaging. They generally come with a 4”/6” image intensifier. They’re ideal for performing studies or scanning extremities such as hands, feet, ankles, knees, elbows, and even shoulders. These units can be especially helpful during external reduction and fixation of fractures since the bone alignment can also be visualized in a non-invasive manner via real time.

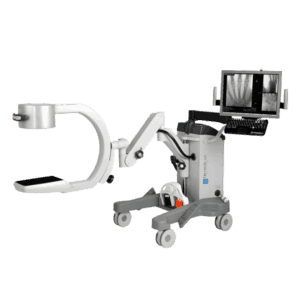

orthoscan fd mini c-arm
Orthoscan HD Mini C-Arm
oec 6800 miniview mini-size c-arm front view
OEC 6800 Miniview Mini-Size C-Arm

Compact C-Arms

Compact C-Arm machines are larger than a Mini C-Arm, but not as big as a Full-size C-Arm (almost like a hybrid of the two). These compact systems can come in either one-piece or two-piece systems, with the main benefit being its mobility. If you need something bigger than a Mini C-Arm, but don’t have the room or need for a Full-Size C-Arm – the Compact C-Arm is a great compromise.

ziehm quantum compact c-arm side view
Ziehm Quantum Compact C-Arm

Full Size C-Arms

Full-Size C-Arm machines tend to be the most sought after model because they allow you to perform just about any type of procedure. These C-Arm machines are usually used for swallow tests, spine and torso studies, cardiology, pain management and surgery. The open space in the regular full size C-arm is 26 inches, making it large enough to fit a table and patient between the image intensifier and the tube. They can come with a 6/9″ Image Intensifier, and even a 12″ image intensifier, which can be especially useful for cardiology.

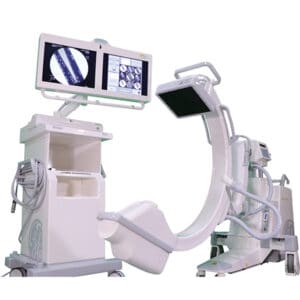

oec 9800 c-arm side view
OEC 9800

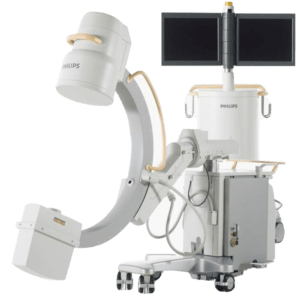

philips pulsera 9 full-size c-arm front view
Philips Pulsera 9

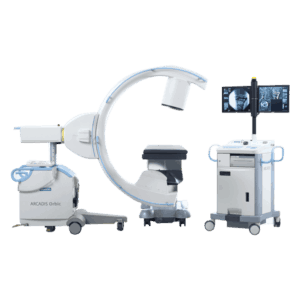

siemens arcadis orbic full-size c-arm
Siemens Arcadis Orbic

Super C C-Arms

A Super C C-Arm gives more space from the middle of the C-arm to the outer edge. The extra open space in a Super C (33 inches), allows for additional room to accommodate larger or obese patients.

Get Started

Request Pricing Today!

We’re here to help! Simply fill out the form to tell us a bit about your needs. We’ll contact you to set up a conversation so we can discuss how we can best meet your needs. Thank you for considering us!

Great support & services

Save time and energy

Peace of mind

Risk reduction

Recognized C-Arm Brands

The key players in the United States C-arm market include GE Healthcare/OEC, Philips, Siemens and the German-based Ziehm Imaging, who has made a strong push in the market over the past few years. Top sellers outside the US include Shimadzu and Hitachi.

New Notable Features

Notable features on newer mobile C-arm machines include 3-D navigation aids and image processing software to improve image quality and system capabilities. Some systems also offer technologies to reduce the radiation dose delivered to patients. Other features include a touch-screen interface, laser aiming guides, digital subtraction angiography (DSA) and procedure road mapping, allowing vascular procedures to be premeditated with minimum amounts of contrast media and shorter fluoroscopy times.

The OEC C-arms have a rotating handle on the C-arm for added ease of steering the rear wheels of the system, and allowing for lateral movement with less effort. Though both have the same scanning capabilities, the old-style OEC C-Arms required the user to put in quite a bit of strength and effort for the steering.

C-Arm Digital Retrofit

There is a cost-effective option for those who have analog OEC 9800 C-Arm and would like to upgrade to DR: the digital retrofit. This flat panel digital detector effectively upgrades OEC 9800 series C-Arms into the digital era. It’s an excellent alternative to purchasing a brand new machine as it’s significantly less expensive, and more convenient.

Amber Diagnostics has proudly served the healthcare community for over 25 years with our expertise, custom warranty plans, and high-quality equipment.

If you have questions about a specific C-Arm or need help choosing the best C-Arm for your business, give me a call today. You can also browse our full range of C-Arm equipment here.
