vieworks vivix - s portable wired digital radiography.

Vieworks Vivix – S Portable Wired Digital Radiography

VIVIX-S Portable, Wired is a Vieworks’ flat panel detector with 14″ x 17″ coverage area for general radiographic applications using its unique image processing system.

White background
vieworks vivix - s portable wired digital radiography.

Overview

IVIX-S Portable, Wired is a Vieworks’ flat panel detector with 14″ x 17″ coverage area for general radiographic applications using its unique image processing system. With the same size as a film or a CR cassette, it is an optimized solution for upgrading conventional X-ray system. User friendly imaging software, VXvue TM is compliant with DICOM 3.0 standard and provides consistent image quality. It only takes a few simple steps to acquire and transmit images to the DICOM server through Gigabit Ethernet.

Benefits

Vieworks ViVIX – S Portable Wired Digital Radiography gives you the following benefits:

  • Wide active area of 14″ x 17″
  • High spatial resolution with 140um pixel array.
  • Stable and reliable automatic exposure detection (Anytime TM )
  • Viewer software running on Windows™OS (VXvue TM )
  • Communication interface through Gigabit Ethernet (1000 BASE-T)
  • Simple and easy integration with all kinds of digital radiography system.

Features

The Vieworks ViVIX – S Portable Wired Digital Radiography provides you with with the following Specification:

  • Application: General radiography
  • Technology: Flat panel detector : a-Si TFT with PIN diode
  • Scintillator: CsI:Tl, Gadox
  • Pixel pitch: 140㎛ x 140 ㎛
  • Pixels: 2560 x 3072 pixels
  • Image Size: 14 x 17 inches (35 * 43cm)
  • A/D Conversion: 14 bit
  • Grayscale: 16,384 grayscales
  • Maximum Dose: 4mR
  • X-ray voltage range: 40 ~ 150kVp
  • X-ray Generator Interface: Line trigger : DR trigger Mode, Passive trigger mode
  • Interface: Gigabit Ethernet (1000BASE-T)
  • Detector cable: GigE communication and power supply (3m / option:7m)
  • Dimensions: 460 x 384 x 15 mm
  • Weight: Approx. 3.0kg (GOS) / 3.2kg (CsI)
  • Operating Environment: 15 – 35°C, 30 – 85% RH (non-condensing)
  • Power: DC24V, 0.5A

RELATED PRODUCTS

summit radiology room systems Summit Radiology Room System Versatility for Any Procedure, Reliability for Lasting Performance. All the… See More
vieworks vivix - s dr fixed digital radiography Vieworks Vivix – S DR Fixed Digital Radiography ViVIX-S is a Vieworks’s flat panel digital radiography system with… See More

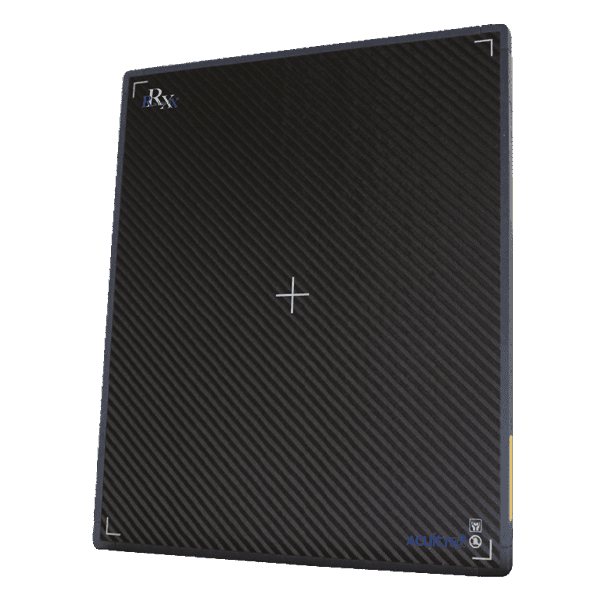

radmedix acuity hd 1417 wireless digital radiography Radmedix Acuity HD 1417 Wireless Digital Radiography Acuity HD 1417 Wireless is a complete wireless, cassette sized… See More
