Quick answer: The Oakworks CFPM300 is a three motion C-Arm imaging table offering height, float and tilt. It is the most commonly specified configuration in pain management and general fluoroscopy, covering the great majority of injection and guidance work without paying for a fourth axis most practices never use. Carbon fibre top, 500 lb capacity, four year frame warranty.

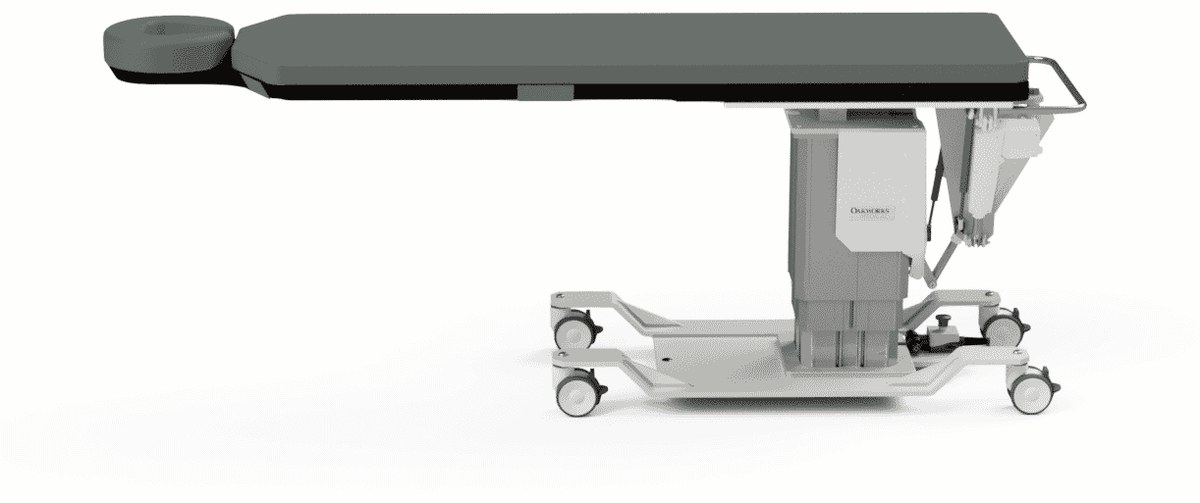

Oakworks CFPM300 3 Motion C-Arm Table Overview
Three motion is the sweet spot in this category, and it is what we recommend most often. You get powered height for safe transfers and imaging elevation, float to move anatomy through the field, and tilt for the procedures that need it. What you give up versus a four motion table is one float axis, which most pain management and general fluoroscopy work never calls for.
The CFPM300 uses the Oakworks single tower lift with a large adjustable height range, and is available with either an integrated headrest top at 56 inches of metal-free imaging space or a rectangular top at 52 inches.
Key Specifications
| Specification | Detail |
|---|---|
| Motions | 3: height, float, tilt |
| Tabletop | Carbon fibre, integrated headrest or rectangular |
| Metal-free imaging space | 56 in. integrated headrest, 52 in. rectangular |
| Patient weight capacity | 500 lbs (227 kg) |
| Options | Foot control, 110V or 220V, 5 in. casters |
| Certifications | FDA listed, cETL approved, CE marked |
| Warranty | 4 years on frame, understructure, upholstery and padding |
Who the CFPM300 Is For
Pain management practices performing epidural steroid injections, facet blocks and radiofrequency ablation. This is the default recommendation for that work and has been for years.
General fluoroscopy suites and ambulatory surgery centres with a broad case mix. If you regularly perform vascular studies requiring Trendelenburg, step up to the four motion CFPM400. If your work is confined to straightforward injections, the one motion CFPM100 may be all you need at meaningfully lower cost.
Where the CFPM300 Sits
| Model | Motions | Typical use |
|---|---|---|
| CFPM100 | 1: height only | Cost-conscious injection practices |
| CFPM200 | 2: height plus float | Focused procedure rooms, narrower case mix |
| CFPM300 | 3: height, float, tilt | Pain management and general fluoroscopy, most common choice |
| CFPM400 | 4: adds lateral float | Full surgical and vascular positioning control |
Refurbishment and Support
As an authorised Oakworks dealer we supply the CFPM300 new with full factory warranty, and refurbished when units become available. Imaging tables stay in service a long time, so refurbished availability is intermittent. Tell us your timeline and budget and we will tell you honestly which route makes sense.
We support you from site planning through shipping, installation and technical servicing. Warranties and financing are available on every system we sell. Keep your costs down and imaging capabilities high with Amber Diagnostics.
Frequently Asked Questions
Is three motion enough for a pain management practice?
For the overwhelming majority, yes. Epidural steroid injections, facet blocks and radiofrequency ablation are well served by height, float and tilt. The fourth motion on a CFPM400 adds lateral float, which matters for surgical and vascular work but rarely changes anything in a standard injection practice. Buy the motions your procedures actually require.
What is the difference between the CFPM300 and the DTPM300?
Both are three motion tables, but the DTPM300 uses a two tower design with a rectangular polycarbonate top, a 450 lb capacity and 40 inches of open space between the towers. The CFPM300 uses a single tower with a carbon fibre top and 500 lb capacity. The DTPM300 is the more cost-effective option; the CFPM300 is the more capable one.
Can I add motions to a table later?
No. Motion count is determined by the lift and frame architecture, so it is fixed at manufacture. This is worth thinking through carefully at purchase, because outgrowing a table means replacing it rather than upgrading it. If you anticipate adding vascular work within a few years, buy the four motion table now.
Request Pricing on a Refurbished CFPM300
Tell us your procedure mix, your budget and your room, and we will tell you honestly whether the CFPM300 is the right fit. Call +1 888-561-7900 or 407-438-7847.
