Quick answer: The Oakworks CFPMFXH is a fixed height C-Arm imaging table, standard at 37 inches with custom heights from 31 to 36 inches available at order. Oakworks positions it as the best value in a full carbon fibre top design. It carries a 500 lb patient weight capacity, 56 inches of metal-free imaging space and a four year frame warranty.

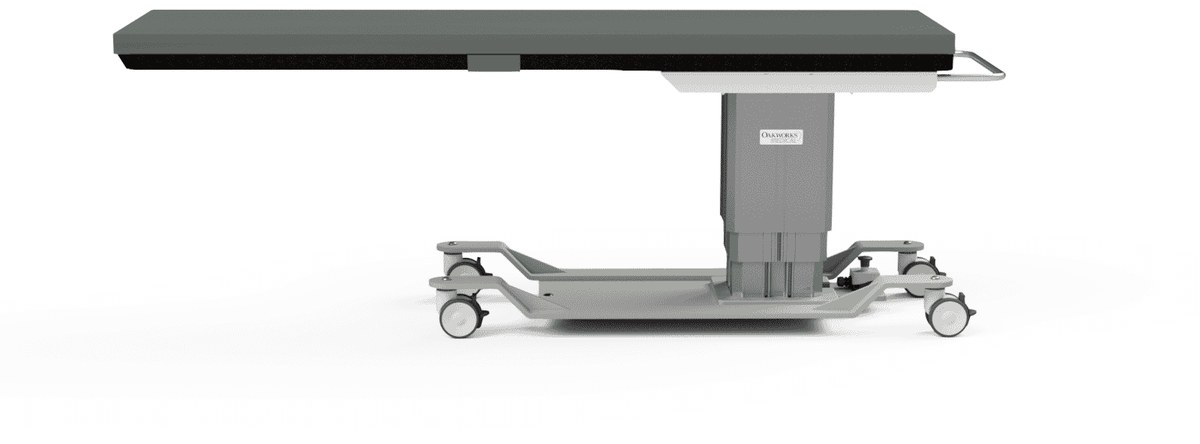

Oakworks CFPMFXH Fixed Height C-Arm Table Overview
Powered height adjustment is the single most expensive component in an imaging table. Removing it removes a lift column, a motor, a control system and a meaningful share of the price, while keeping the thing that actually matters for imaging: a fully radiolucent carbon fibre top with a long metal-free span.
The catch is that you commit to a working height at order. If your staff, your C-Arm and your procedures are consistent, that is a reasonable trade. If you transfer patients from wheelchairs or your surgeons vary in height, a powered table is worth the difference.
Key Specifications
| Specification | Detail |
|---|---|
| Motions | None, fixed height |
| Standard height | 37 in. (94 cm) |
| Custom height option | 31 in. to 36 in. (79 to 91 cm), specified at order |
| Tabletop | 22″ W x 84″ L carbon fibre with integrated head rest |
| Metal-free imaging space | 56 in. |
| Patient weight capacity | 500 lbs |
| Table weight | 343 lbs (156 kg) |
| Certifications | FDA listed, cETL approved, CE marked |
Who the CFPMFXH Is For
Practices with a consistent, repeatable workflow where working height does not need to change between cases or operators. Veterinary and research settings also make good use of fixed height tables.
Facilities equipping a second or third room on a constrained budget, where the primary suite already has a powered table. If patient transfers from wheelchairs are routine, choose the CFPM100 instead. Its 22 to 40 inch range is the lowest in the industry and that low transfer height is a genuine safety consideration.
Refurbishment and Support
As an authorised Oakworks dealer we supply the CFPMFXH new with factory warranty, and refurbished when units become available. Because the height is fixed at manufacture, specify it carefully. We will walk through your C-Arm model, your table position and your operators before you commit to a number.
We support you from site planning through shipping, installation and technical servicing. Warranties and financing are available on every system we sell. Keep your costs down and imaging capabilities high with Amber Diagnostics.
Frequently Asked Questions
Can the height be changed after purchase?
No. The height is set at manufacture, which is why the custom range from 31 to 36 inches is specified at order rather than adjusted later. Think it through carefully, including who operates the C-Arm and whether that is likely to change. If there is real uncertainty, a powered table is the safer purchase.
How much does a fixed height table save versus a powered one?
Enough to matter, though Oakworks quotes per configuration rather than publishing list pricing. The saving comes from removing the lift column, motor and control system. Tell us your configuration and accessories and we will put a specific number in front of you rather than a range.
Is a fixed height table safe for patient transfers?
It depends on your patients. At 37 inches standard it is higher than most wheelchairs and stretchers, so transfers need appropriate assistance and equipment. For ambulatory patients this is a non-issue. For elderly or limited-mobility populations, the low 22 inch minimum on the CFPM100 is a meaningful safety advantage and worth the extra cost.
Request Pricing on a Refurbished CFPMFXH
Tell us your procedure mix, your budget and your room, and we will tell you honestly whether the CFPMFXH is the right fit. Call +1 888-561-7900 or 407-438-7847.
