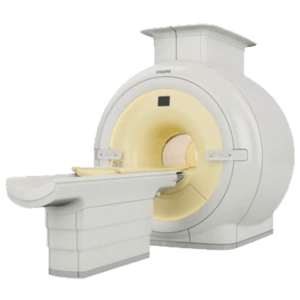

Besides MultiTransmit, the Achieva 3.0T TX embodies all the pioneering technology that has made Philips’ Achieva 3.0 systems the benchmark in high-field MRI, with the largest installed base of compact 3.0T systems in the world.
Overview
The Achieva 3.0T TX with MultiTransmit parallel RF transmission technology is designed to overcome fundamental challenges of high-field imaging, such as the dielectric effect.
Unique to the Achieva 3.0T TX, MultiTransmit reduces dielectric shading to provide optimum image uniformity, consistency and faster scanning. Thus driving the growth of 3T MRI into expanding application areas like breast and body imaging.
Benefits
Philips Achieva 3.0T TX gives you the following benefits:
Contrast uniformity, speed, consistency MultiTransmit technology overcomes dielectric shading by using simultaneous (parallel) transmissions from multiple RF sources. It automatically optimizes the power, amplitude, phase, and waveform for optimal RF uniformity.
All benefits of proven 3.0T technology The system’s exclusive Quasar and Quasar Dual gradient systems offer gradient amplitudes up to 80 mT/m to provide superb performance with excellent linearity.
Features
The Philips Achieva 3.0T TX provides you with with the following Specification:
- Weight: < 4600kg
- Bore diameter: 60 cm
- Maximum FOV: 50x50x45 cm
- TCryogen: Liquid Helium. Zero boil -off system*.
- Number of Channels: 16 standard, 32 optional.
- Parallel RF transmission: Yes, MultiTransmit.
- RF control: Patient-adaptive and anatomy adaptive for each source, automatic.
