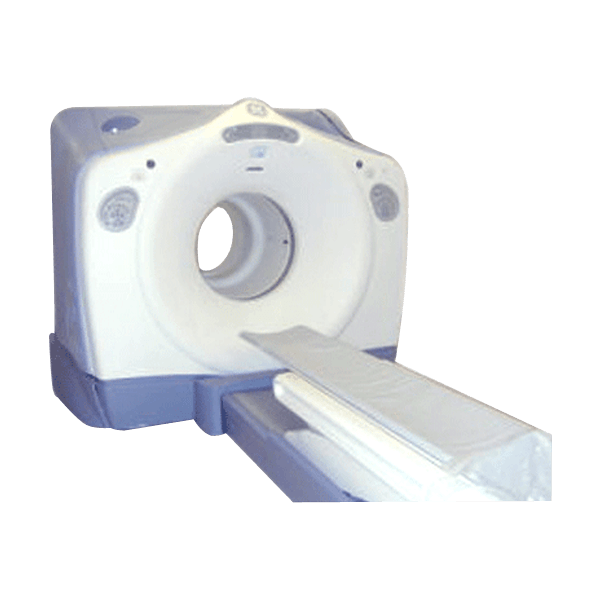

GE Discovery LS 4 Slice PET/CT

The GE Discovery LS is a whole-body 4-slice PET/CT scanner – the fusion of GE’s PET Advance NXi and LightSpeed Plus CT.

GE Discovery LS 4 Slice PET/CT

The GE Discovery LS is a whole-body 4-slice PET/CT scanner – the fusion of GE’s PET Advance NXi and LightSpeed Plus CT.
ge discovery ls 4 slice pet-ct

GE Discovery LS 4 Slice PET/CT gives you the following benefits:


The GE Discovery LS provides perfect registered and fused anatomical and functional images for optimal treatment planning and followup.

Using GE’s PET Advance NXi functionality, the Discovery assesses the body’s chemical or physiological changes that often precede anatomical changes visible in CT or MR.

The Advance NXi within the GE Discovery LS ensures the highest 2D and 3D sensitivity, full-field uniformity of resolution and high count rate capability.

A refurbished, used GE Discovery LS is an affordable and very reliable option to introduce PET/CT imaging and its superior clinical usage into your department or clinic.

The GE Discovery LS 4 Slice PET/CT provides you with with the following Specification:


Discovery LS Gantry
• Dimensions: Height x Width x Depth: 208.3 x 235 x 205 cm (82 x 92.5 x 81 in)
• Weight: 4,581 kg (10,100 lb)
• Patient port diameter: 60 cm (PET), 70 cm (CT)
• Patient Positioning: Triple laser
• Transmission source: Attenuation correction using CT and/or Ge-68 pin sources

Detector
• Ring diameter: 93 cm
• # of crystals: 12096
• Crystal composition: BGO
• Crystal size: 4 x 8 x 30 mm
• Axial fov: 152 mm
• Number of crystals per pmt (# of rings): 18/dual-anode PMT (9/anode)
• System sensitivity: 200,000 (2-D), 1,150,000 (3-D) cps/µCi/cc
• Scatter fraction: 10% (2-D), 35% (3-D)
• Maximum count rate, cps @ 50% dead time: 425,000 cps @ 160 kBq/mL (2-D), 410,000 cps @ 26 kBq/ml
(3-D); NECR

Environment
• Operating temp range: 18.3-24 Celsius (65-75 Fahrenheit)
• Relative humidity: 30-60 %
• Cooling: 31,000 btu/hr (minimum); no water chilling required

Other characteristics
• Numeric display of count rate and elapsed time, dual operator controls on each side of gantry, footswitch
for scan start, wide array of patient positioning accessories

Optional Attachments:
• Additional analysis workstations, AP nodes, and raw data memory
• 4.6 GB MOD
• Laser printer
• Networking
• ECG synchronizer
• ECG strip-chart reader
• Color printer
• Flat tabletop for RT
• Gammex Laser lights

Discovery LS Patient Table
• Vertical motion: 56-102 cm
• Horizontal motion: 160 cm (200 cm optional)
• Head support: Fixed offset headholder
• Arm support: Yes
• Max.patient weight capacity: 180 kg (400 lb) with 0.25 mm positional accuracy

Computer System
• Acquisition CPU: Sun UltraSPARC dual, 450 MHz CPU, 512 MB RAM (PET), SGI Octane, 1-2 MIPS CPU with 2
MB cache, 64-bit microprocessor, single/dual r12000A processor with direct 3-D option (CT)
• Storage media/size: More than 1 GB storage38 GB HD (PET), 1.5 GB HD (CT)
• Array Processor: PowerPC 750 nodes, 4 G3 nodes standard
• Image processor: SGI VPRO V12-DCD Graphics Engine with 128 MB SDRAM Storage media/size: More than
1 GB storage36 GB root/database, 12 GB DAT; 4.6 GB MOD
• Display: 21-inch tilt/swivel high-resolution color
• Printing options: DICOM color printer
• Acquisition possibilities: 2-D and 3-D, static, dynamic, whole body, gated, transmission, 4-D respiratory
gating

Installation Requirements for the Discovery LS
• Minimum room size: 3.9 x 7.1 m (13 x 23.5 ft)
• DICOM 3.0 Compatible: YesPET IOD storage as SCP/SCU, CT IOD storage as SCP, MRI IOD storage as SCP,
DICOM print as SCU, DICOM secondary capture as SCP/SCU
• Power Needed: 380-480 VAC nominal, 3-phase, 50/60 Hz

Available Software
• CardIQ Fusion for CTA and PET Perfusion display and analysis
• 5-Beat Cardiac
• CT/PET fusion
• Advantage 4-D for CT gating
• SimMD for multimodality simulation
• Lung VCAR
• Cortex ID for neurology studies
• Perfusion

Transaxial fwhm
• 1 cm rad, statny: 4.8 (Transaxial fwhm)
• 10 cm rad, statny: 5.4 (6.2 @ 20 cm) (Detector Performance)

Axial fwhm
• 1 cm radius: 4 (Axial fwhm)
• 10 cm radius: 5.4 (Detector Performance)

Other - GE Discovery LS
• Energy resolution: 20%
• FDA Clearance: Yes
• CE MARK (MDD): Yes
