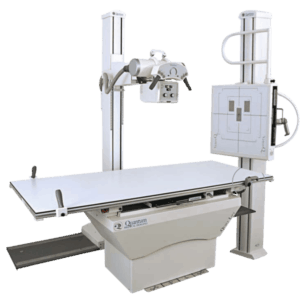

Quantum Q-Rad Radiographic Systems

Quantum Q-Rad Systems provide precision and reliability through "Smart-System Design" technology.

Quantum Q-Rad Radiographic Systems

Quantum's wide selection of system configuration and extensive options, as well as its line of powerful 120 kHz Ultra High Frequency X-Ray Generators, accommodate every type of radiographic system requirement and exam. The systems are also flexible enough to meet various room size requirements, as well as different facility budgets.

All Quantum Q-Rad systems and components are designed to allow use of direct digital imaging technology (DR), as well as all CR solutions. Upgradeability is fast, easy and affordable with any Quantum Q-Rad system by the use of our "D-QiX" digital solution program.
quantum q-rad radiographic systems

Quantum Q-Rad Radiographic Systems gives you the following benefits:


Quantum Design and Innovation Q-Rad systems provide precision and reliability through “Smart-System Design” technology. Innovations such as TechVision™, Q-VISION HF Series Generator Controls, 650 lb patient weight capacity, FAIL-SAFE electromagnetic braking systems, collision avoidance electronics and EZ-Glide handle controls are just some of the unique and valuable advantages of Quantum's Q-Rad radiographic systems.

Q-Rad Ceiling-Mounted Systems Quantum’s ceiling-mounted radiographic systems are designed for hospital emergency rooms, imaging centers and orthopedic facilities which demand not only high quality, but maximum flexibility, in order to accommodate all types of imaging exams. Q-Rad systems are not only aesthetically pleasing, but designed with input directly from technologists.

Q-Rad Floor-Mounted Systems Designed for high patient volumes within hospital radiology departments, imaging centers, orthopedic facilities, surgery centers, and urgent care clinics. Quantum’s Q-Rad floor-mounted systems are feature-rich and offer full positioning functionality, while providing the highest degree of image quality and patient care.

System Flexibility Quantum’s wide selection of system configurations and extensive options, as well as its line of powerful high frequency x-ray generators accommodate every type of radiographic system requirement and exam. The systems are flexible enough to meet various room size requirements, as well as different facility budgets.

Q-Rad-DIGITAL Systems All Quantum Q-Rad systems and components are already designed to allow use of direct digital imaging technology (DR), as well as all CR solutions. Upgrade ability is fast, easy and affordable with any Quantum Q-Rad system. Quantum also offers an extensive line of Q-Rad-DIGITAL: "DRX Series" Systems, offering ceiling and floor mounted systems incorporating wireless detector technology for faster and better results. Q-Rad-DIGITAL systems are a secure investment today and in the future.

Generator Options

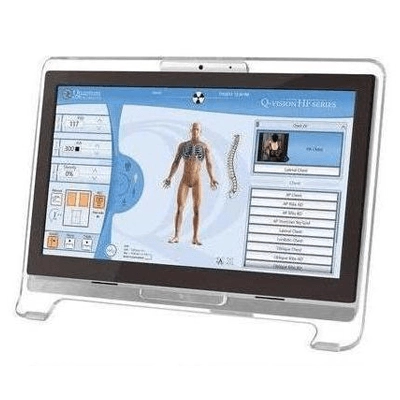

q-vision hf series Q-VISION HF Series Designed for all aspects of general X-Ray imaging and operating at a near constant potential of up to 120 kHz, the Q-VISION provides High Frequency imaging for highly efficient X-Ray production. Radiographic imaging is optimized through the Q-VISION innovative and simple GUI design, which permits a wide variety of routine, specialized and custom procedures.

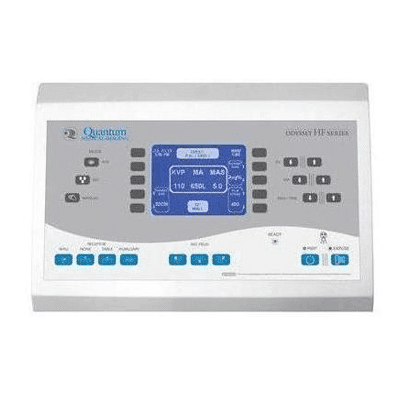

odyssey hf series ODYSSEY HF Series Designed for both digital and conventional imaging and operating at a near-constant potential of up to 120 kHz. The ODYSSEY HF Series provides Ultra High Frequency imaging for highly efficient X-Ray production. Radiographic imaging is optimized through the ODYSSEY HF’s simple programmability, which permits a wide variety of routine, specialized and custom procedures.

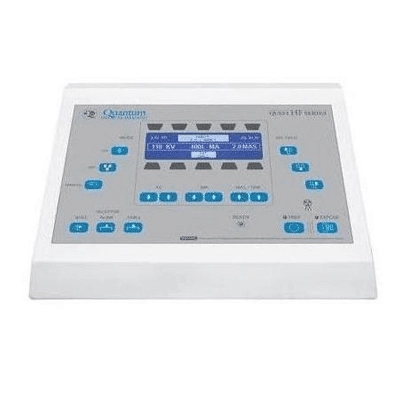

quest hf series QUEST HF Series The QUEST HF’s Ultra High frequency technology permits a near-constant potential of up to 120 kHz, for highly efficient, superbly precise imaging. A simple operating program, with integrated user prompts, permits a wide range of routine, specialized and custom examinations.

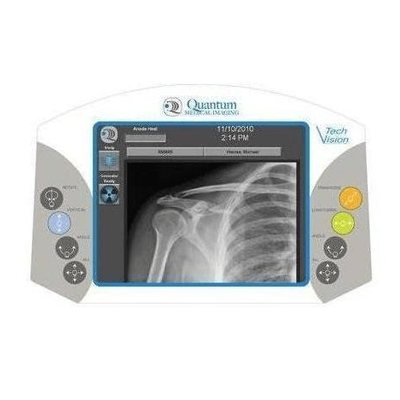

techvision TechVision TechVision eliminates time normally wasted moving from the generator's operator control panel to the patient, in order to prepare for patient exams. This synchronized generator solution greatly streamlines the imaging process and decreases overall examination time, while allowing the technologist to remain close to the patient, for increased patient care.


Table Options

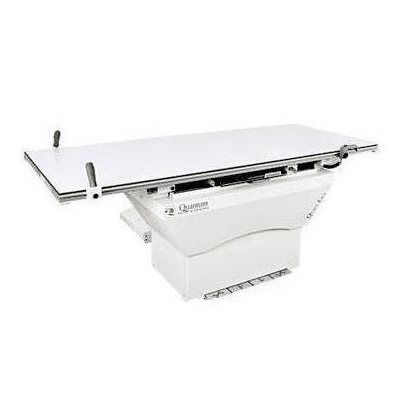

qt-750 elevating/float-top Elevating: QT-750 “QUIET-LIFT” Elevating/Float-Top Radiographic Table - Elevating Range of 21" – 32.5" w/ collision avoidance electronics & safety lock-out control switch; Tabletop length of 85" with 30.5" of longitudinal travel; Tabletop width of 35.5" with 11.5" of transverse travel; 650 lb. Patient Weight Capacity
qt-740 elevating/float-top 4-Way Floating: QT-740 Float-Top Radiographic Table - Tabletop length of 85" with 32" of longitudinal travel; Width of 35.5" with 11.5" of transverse travel; 650 lb. Patient Weight Capacity; "Flat-Top" Table design for easy patient transfer and cleaning, with low absorption material

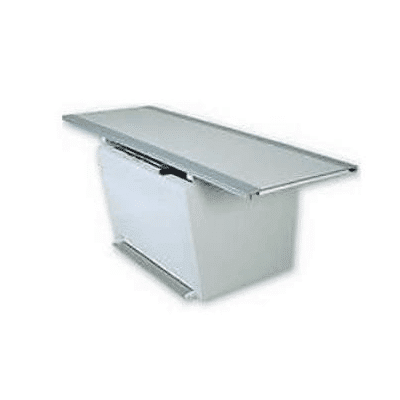

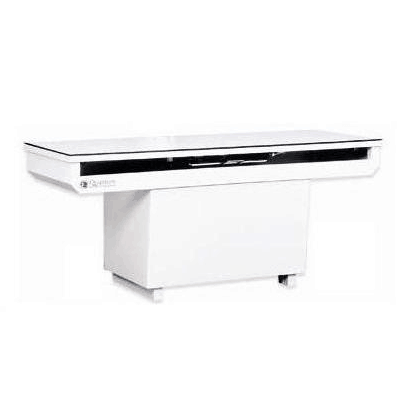

qt-750 elevating/float-top Stationary: QT-730 Radiographic Enclosed Style Table - Tabletop length of 74"; Width of 28"; Height of 31.75"; 650 lb Patient Load Capacity; “Flat-Top” Table design with low absorption material and easy maintenance finish

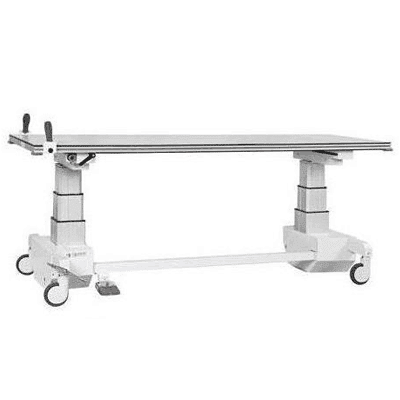

qt-712 elevating mobile float-top Elevating: QT-712-EV Elevating Mobile Float-Top Radiographic Table - The pivot feature, which is designed to allow quick and easy placement of the table into various positions, makes the QT-712-EV Table an excellent choice for imaging patients on a single receptor DR system, as it provides the same capabilities as a fixed radiographic table, yet can be moved entirely out of the room if required. Accommodates patients up to 700 lbs.
qt-711-qlw mobile float-top Mobile: QT-711-QLW Mobile Float-Top Radiographic Table - Floating table-top is 85" in length and provides 15" (+/- 71/2") of longitudinal travel, while the table-top width is 28 1/4" and provides 4.5" (+/- 21/4") of transverse travel; Standard table-top height is 31 1/2", but can also be ordered with 27 1/2" in height (option), if your system has table height limitations; Accommodates patients up to 650 lbs.
qt-710 mobile radiographic table Mobile: QT-710 Mobile Radiographic Table - Tabletop length of 74"; Width of 28"; Height of 31.75"; 650 lb Patient Load Capacity; Low absorption tabletop material


Tubestand Options

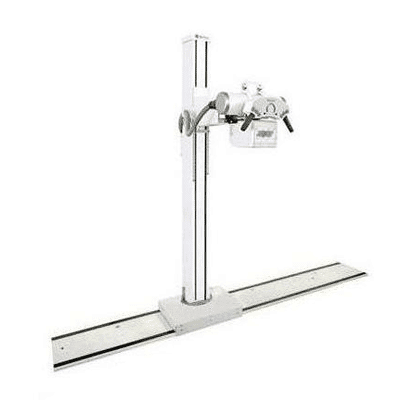

qs-550 deluxe floor mounted tubestand Floor Mount: QS-550 Deluxe Floor Mounted Tubestand - 10 ft. long tracks and 98" of longitudinal travel; Deluxe Handgrips: multi-function, fingertip controls for horizontal, vertical, transverse, and longitudinal movements; Vertical Travel of 60.5" with minimum floor to focus distance of 13.75"
qs-508 radiographic tubestand Floor to Wall Mount: QS-508 Radiographic Tubestand - Floor to Ceiling (or Wall Mount) with 8 ft long tracks and 72" longitudinal travel; Operator Control Handgrip with multi-function, fingertip controls for vertical, horizontal and angulation movements; Vertical Travel of 60.5" with minimum floor to focus distance of 13.75"

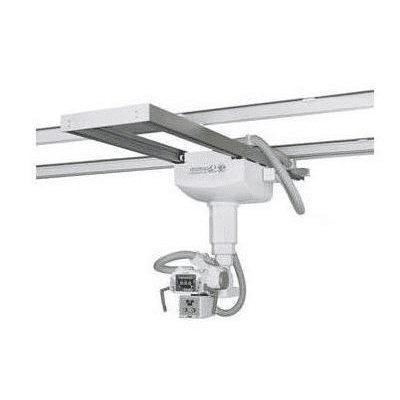

rs-590 ceiling mounted tube support Ceiling Mount: RS-590 “CMT” Ceiling Mounted Tube Support - Telescopic column with 65" of vertical travel, with focus-floor distance of 10", in a 9' ceiling; Longitudinal travel range of 137.75" with standard rail length of 14 feet; Standard Operator Handgrip with multi-function switches


Bucky Options

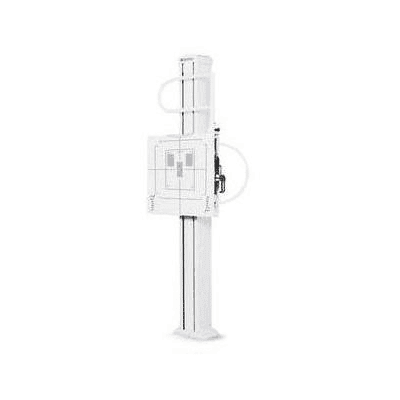

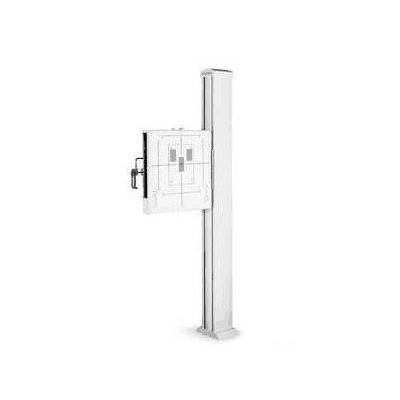

qw-420 wall stand VERTI-Q: QW-420 Wall Stand - Vertical Travel: 60.0 (±1.0)" with a 15.0 (±0.5)" minimum Focal Spot-to-Floor Distance; Accepts cassette sizes of up to 14" x 17"; Low absorption front cover material with cassette and AEC Indicators; FAIL-SAFE electromagnetic braking system plus integral counterbalancing, ensure safe and easy use
qw-420-s space saving wall stand VERTI-Q SIDE MOUNTED: QW-420-S Space Saving Wall Stand - Vertical Travel: 60.0 (±1.0)" with a 15.0 (±0.5)" minimum Focal Spot-to-Floor Distance; Accepts cassette sizes of up to 14" x 17"; Low absorption front cover material with cassette and AEC Indicators; FAIL-SAFE electromagnetic braking system plus integral counterbalancing, ensure safe and easy use

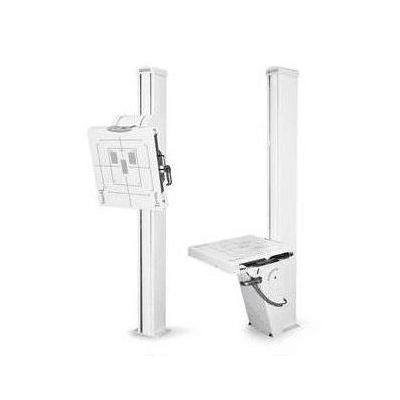

qw-420-mt manual tilting wall stand VERTI-Q TILT: QW-420-MT Manual Tilting Wall Stand - Vertical Travel: 57.0 (±1.0)" with a 15.0 (±0.5)" minimum Focal Spot-to-Floor Distance; Manual Tilting Movement (+90°/-15°), with stops at -15° +90° detents at 0°; Accepts cassette sizes of up to 14" x 17"; FAIL-SAFE electromagnetic braking system plus integral counterbalancing, ensure safe and easy use

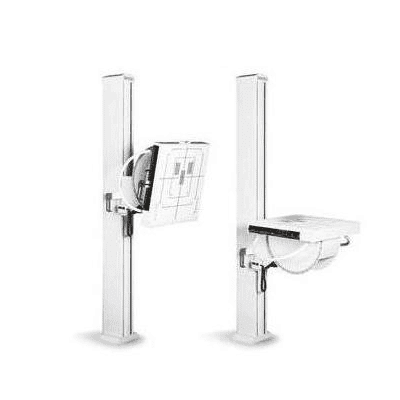

qw-420-t motorized tilting wall stand VERTI-Q TILT: QW-420-T Motorized Tilting Wall Stand - Vertical Travel: 60.0 (±1.0)" with a 15.0 (±0.5)" minimum Focal Spot-to-Floor Distance; Motorized Tilting Movement (+90 / -15°), with stops at 0 and 90 degrees; Accepts cassette sizes of up to 14" x 17"; FAIL-SAFE electromagnetic braking system plus integral counterbalancing, ensure safe and easy use
