Summit X-Ray Room

The Summit X-ray room is know for its versatility, reliability and lasting performance. All the features you need at a price you can afford

Summit X-ray Room Overview

Ideal for the clinic, group and private practice, these reliable, versatile systems are an outstanding value in high quality orthopedic radiography.


Full Travel Wallstand:
A precision bearing system provides effortless vertical travel of the stationary grid cabinet or optional reciprocating bucky. Accommodating up to a 14” x 17” (35 cm x 43 cm) cassette in either direction, the wallstand allows a broad range of procedures including weight-bearing exams.

High Performance Generators:
Complement any radiographic system with a high-quality, state-of-the-art generator. We offer SinglePhase and Three-Phase, High Frequency generators to accommodate a wide range of procedures for hospitals, private practices, and stand-alone imaging centers.

Digital-ready Systems:
Radiographic equipment is completely compatible with most digital imaging systems. Digital imaging technology may be added at any time.

System Options

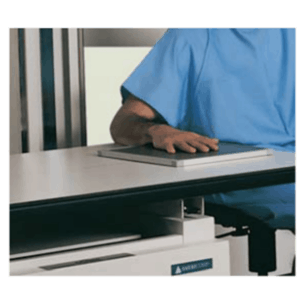

AM1 Elevator Float Top Table System

The AM1 system includes an elevating float top table that provides an elevation range of 22 1/2” to 34” (57 cm to 86 cm) for effortless patient transfer. It is very well suited for immobile, pediatric or geriatric patients. The smooth, quiet lift mechanism and high-capacity motor safely handles patients weighing up to 400 lbs. (182 kg).

AM2 Float Top Table System

The AM2 system consists of a float top table that is 31” (79 cm) in height with a welded steel pedestal base that facilitates patients weighing up to 400 lbs. (182 kg).

Rotational Tubestand

Cross-table procedures can be easily accomplished by the rotational tubestand and optional tube trunnion rings.


The extended tube travel eliminates the need for a platform during weight-bearing procedures.
