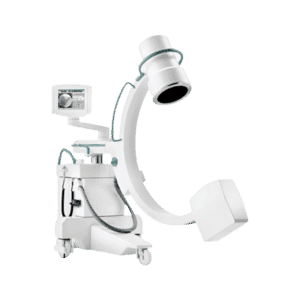

Ziehm Vision C-Arm

The Ziehm Vision C-Arm is the perfect choice for demanding procedures in neurosurgery, vascular surgery and cardiac applications

Ziehm Vision Overview

Ziehm Vision R is the perfect choice for demanding procedures in neurosurgery, vascular surgery and cardiac applications. The powerful monoblock generator with rotating anode delivers up to 20 kW power, enabling Ziehm Vision R to produce high-quality images with minimal dose exposure. This high-frequency pulse generator operates with a variable pulse width between 4 ms and 50 ms. It also comes with a unique liquid cooling system (Advanced Active Cooling) and is specially designed for extended use in operating theaters. Ziehm Vision R features two 18″ flatscreen monitors, which clearly visualize the smallest anatomical details even from a distance or at an angle.

Benefits:

Powerful Generator for Optimal Image Quality
Ziehm Vision R features a highly compact and powerful monoblock generator with a rotating anode. This industry-leading high-frequency pulse generator operates with a variable pulse width between 4 ms and 30 ms.

Optimal Visualization
The high resolution CCD camera, which enables anatomic visualization in a high dynamic range, is a key component in the imaging chain. With 1 k x 1 k resolution and more than 4,000 shades of gray, it visualizes even the smallest anatomical structures.

Contrast-Rich Display
Ziehm Vision R features dual 19″ TFT color flatscreens that stand out for their exceptional brightness and contrast. Even at a distance and from an angled view, these high resolution monitors provide the physician with an optimal visualization of even the finest details.

PreMag For Ease of Magnification
PreMag is a preview function that allows the operator to simulate the size of a magnified image before taking a second exposure. Based on the first scan, the operator can precisely define the scan region and preview the results of magnifier 1 or 2 without any additional exposure for the patient. Once the magnification has been adjusted the operator may make an exposure if required.

Specially Tailored Organ Programs
The number of cardiovascular procedures in obese patients increases every year. In these cases penetration and image quality can be particularly challenging. A perfect combination of innovative hardware and software components and specially tailored organ programs ensures the best possible image quality.

Features:
  • 1k x 1k image matrix for high resolution
  • Over 4,000 shades of gray.
  • PreMag (preview function) for quick, radiation-free magnification.
  • Dedicated SmartVascular software improves workflow in vascular procedures.
  • Intuitive use with SmartEye technology.
  • Synchronized touchscreen user interfaces (Ziehm Vision Center) on C-arm and monitor cart.
  • Steer and brake functions activated via a single lever (EasyDrive system).
  • Color levers allow staff to quickly identify desired movement (optional).
