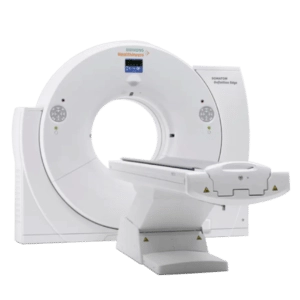

The Siemens Definition Edge 128 Slice CT Scanner is designed to provide high-quality, efficient and fast imaging
Siemens Definition Edge Overview
With its 128-slice imaging capability, advanced detector technology and dual energy imaging, the Definition Edge 128 delivers precise and accurate images of the human body. Its high-performance gantry, advanced cardiac imaging capabilities and comprehensive post-processing tools, such as Syngo software, make it an ideal choice for high-volume imaging centers, hospitals and clinics that require state-of-the-art imaging capabilities. The Definition Edge 128 also prioritizes patient safety with advanced dose reduction technologies, such as CARE Dose 4D. Contact us today to learn more about how the Siemens Definition Edge 128 can enhance your diagnostic capabilities.
Benefits:
- 128-slice imaging capability: The Definition Edge 128 is capable of capturing up to 128 slices per rotation, which means it can provide high-resolution images of the body in a shorter amount of time than CT scanners with fewer slices.
- Dual Energy Imaging: This advanced technology allows for differentiation of structures with similar densities, such as bone, muscle, and blood vessels, to provide more precise diagnoses.
- High-performance gantry: The scanner has a high-performance gantry that is able to rotate around the patient quickly and accurately, which reduces motion artifacts and improves image quality.
- Advanced cardiac imaging: The Definition Edge 128 is capable of performing advanced cardiac imaging studies such as coronary angiography, perfusion studies and calcium scoring.
- Low radiation dose: The scanner is designed to minimize radiation exposure for patients by using advanced dose reduction technologies such as CARE Dose 4D.
- Comprehensive post-processing tools: The scanner comes with a range of advanced post-processing tools, including syngo.via software, that allow physicians to analyze and interpret the images captured by the scanner with great accuracy.
Features:
| Scanner type | Single Source |
| Detectors | Stellar detector |
| X-ray tube | Straton MX |
| Max. scan speed | 230 mm/s |
| In-plane temporal resolution | 142 ms |
| Rotation time | 0.28 s |
| kV steps | 70, 80, 100, 120, 140 kV |
| mA @ 70 kV, 80 kV, 90 kV | 500 mA @ 70 kV 650 mA @ 80 kV |
| Spatial resolution | 0.30 mm |
| Table load up to | 307 kg/676 lbs |
| Gantry opening | 78 cm |
| Generator power | 80 kW, 100 kW |
| Slice acquisition | 128 |
| Tin Filters | yes |
| iMAR | yes |
