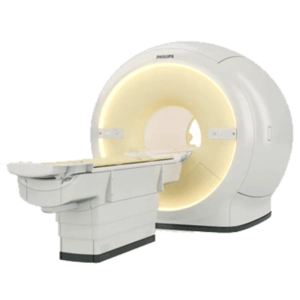

Philips Ingenia 1.5T MRI Scanner helps improve neurosurgery success rate by introducing the MR-OR neurosurgery solution
Philips Ingenia Overview
The Philips Ingenia 1.5T MRI scanner is first-ever digital broadband MR system. It delivers crystal clear images, remarkable speed, and technology that makes RF upgrades a thing of the past. MRI scanner samples the MR signal directly in the coil on the patient, and sends it to the reconstructor via fiber-optic cable. The result is up to 40% higher SNR, and a dynamic range that exceeds 185dB.
The scanner enables imaging with fewer coils and reduce patient set up time, bringing about a throughput increase as much as 30%. The plug-and-play expansion of clinical capabilities is enabled without major system upgrades and channel conflicts. It can halve the number of repetitive tasks for greater efficiency, consistency and reproducibility.
Benefits:
The power to change your MR Featuring DirectDigital, FlexStream and EasyExpand, dStream is an exciting new MR system architecture that delivers crystal clear images, remarkable speed, and technology that makes RF upgrades a thing of the past.
Increase SNR by up to 40% Philips-exclusive DirectDigital RF samples the MR signal directly in the coil on the patient, and sends it to the reconstructor via fiber-optic cable. The result is up to 40% higher SNR, and a dynamic range that exceeds 185dB.
As much as 30% improvement in throughput Designed to streamline workflow and reduce exam time, FlexStream enables imaging with fewer coils and reduce patient set up time, bringing about a throughput increase as much as 30%.
Plug-and-play expansion With EasyExpand you never have to upgrade your RF receive channels to keep up with advances in coil technology. It enables plug-and-play expansion of clinical capabilities without major system upgrades and channel conflicts.
Largest homogeneous FOV for a 70cm bore Combining patient comfort with extended coverage and high image quality, Xtend provides the largest homogeneous field-of-view in a commercial 70cm wide bore system and an excellent combination of magnet homogeneity and gradient performance.
Significant reduction of routine tasks SmartAssist is the next generation of Philips powerful combination of SmartExam and ExamCards. It can halve the number of repetitive tasks for greater efficiency, consistency and reproducibility.
Features:
- Magnet weight: 3060 kg
- Open bore diameter: 70 cm
- Maximum FOV: 55 cm
- Typical homogeneity at 55 x 55 x 50 cm ≤ 5 ppm
- Typical homogeneity at 50 x 50 x 45 cm ≤ 1.8 ppm
- HeliumSave technology: Yes (Zero boil-off)
- Cryogen boil-off rate: 0.0 l/hr*
